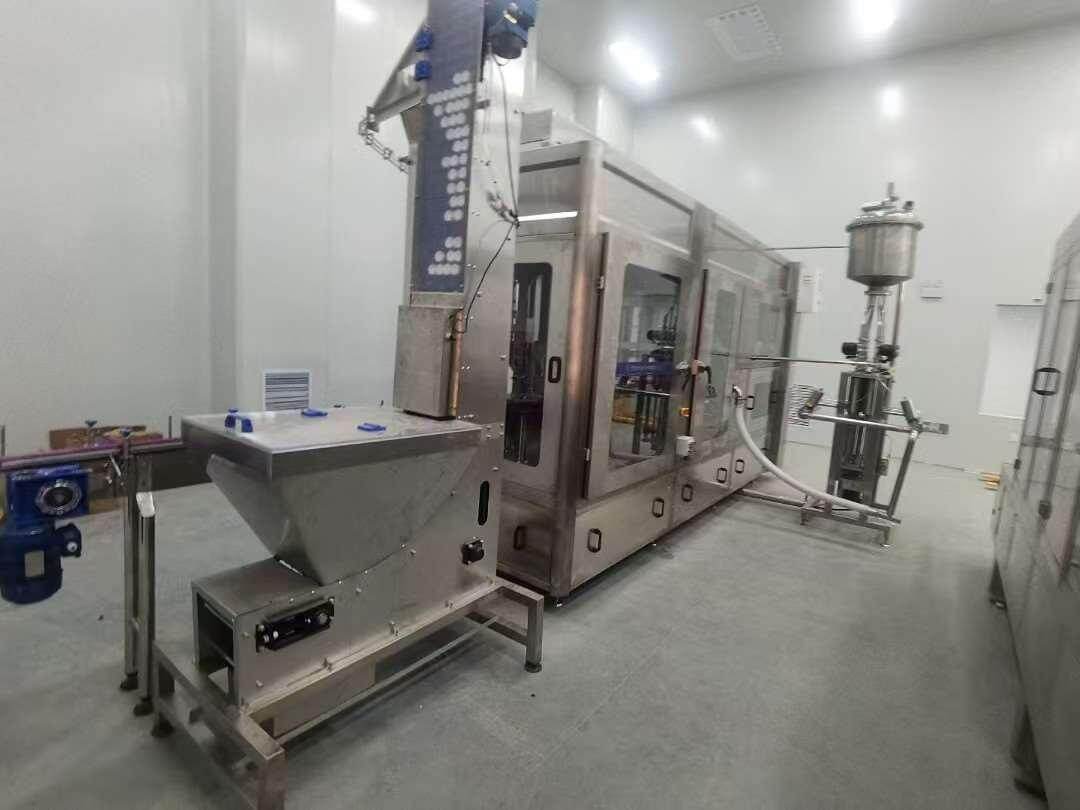

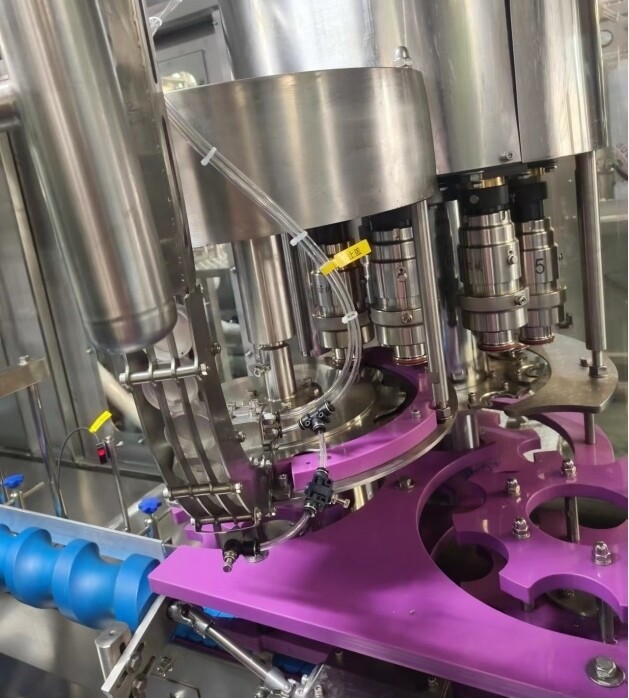

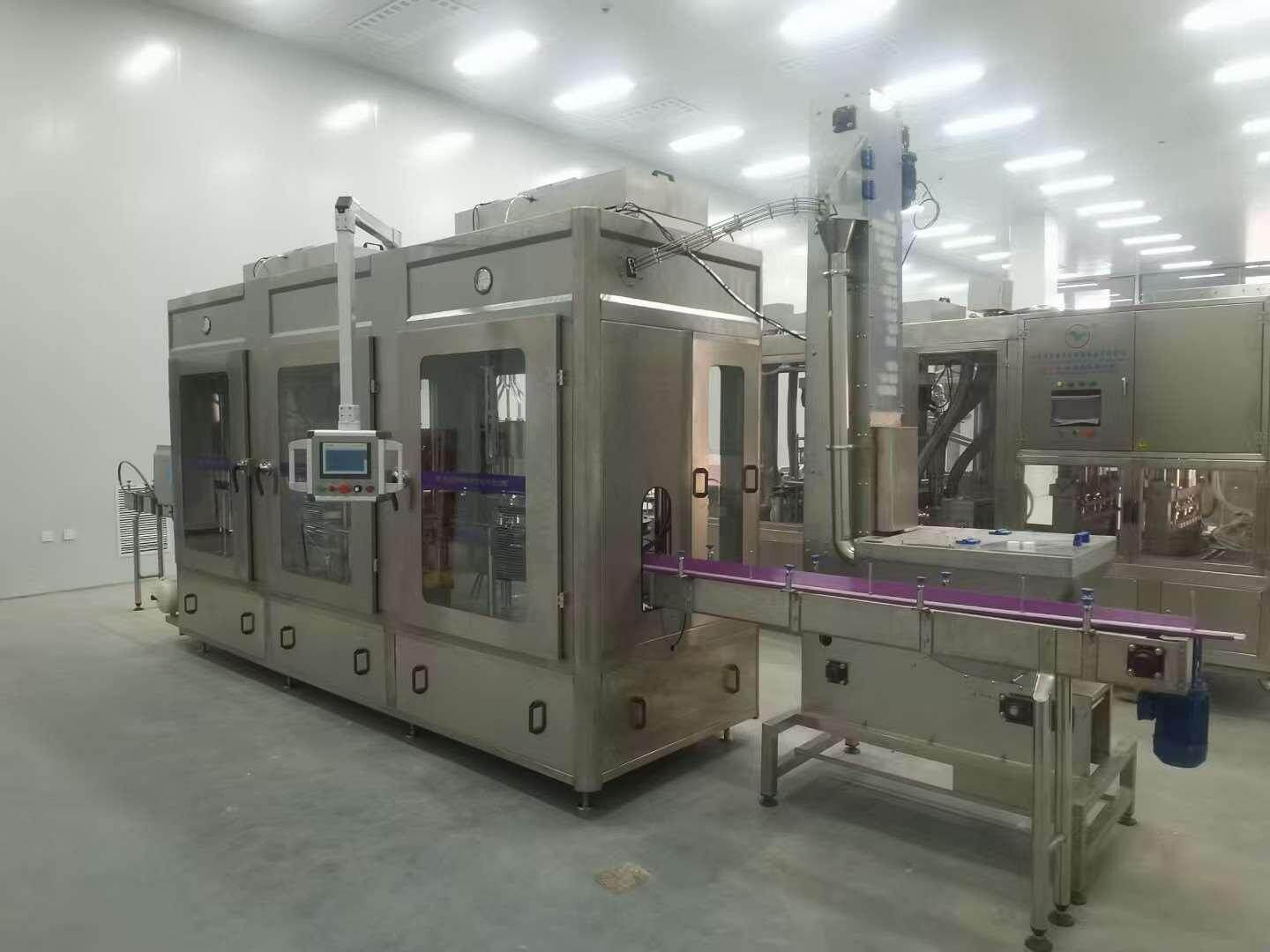

Linear bottle liquid filling machine
Milk, Yogurt, juice, water, beverage bottle filling and capping.
Product Specifications
Filling speed: 2500-10000 bottles/hour
Filling range: 200-2000ml (adjustable)
Total power: 4KW
Power supply: 3n-pn-50hZ 380v/220V
Operating air pressure:≥0.8 Mpa
Air consumption: 0.8m3/min
Overall dimensions: 6000*1500*2400mm
Total weight: about 2500KG
neumatic System:
Name | place of production | Brand |
Pressure regulating device | Taiwan | AirTAC |
Oil and water filter | Taiwan | AirTAC |
Cylinder | Taiwan | AirTAC |
electromagnetic directional valve | Taiwan | AirTAC |
Trachea and connector | Taiwan | AirTAC |
Operational Control System:
Name | place of production | Brand |
PLC | Germany | Siemens |
Touch screen | Germany | Siemens |
Servo motor | Taiwan | Delta |
Contactor | France | Schneider |
Switch | France | Schneider |
Air switch | France | Schneider |
Electric relay | Japan | Omron |
Direct-current main | Taiwan | Mean well |
CIP Device:
Name | place of production | Brand |
Cleaning pipe line | Suzhou | Starno |
Air operated valve | Shanghai | YuanY |
Cleaning System:
1. It can be connected to the CIP during cleaning.
2. The milk delivery tube and cleaning tube share the same pipeline.
3. The tank is equipped with automatic cleaning balls.
4. The feed valve, upper return valve, and filling head adopt presentable opening and closing times during cleaning mode, with cleaning duration displayed.
5. The CIP back flow pump must be greater than or equal to the injection pump.
